Introduction

I’ve been working through Harvard’s awesome CS50x Introduction to Computer Science course, and a concept that’s been pretty interesting to me is the hash table data structure. This data structure allows us to leverage the best properties of arrays and linked lists to achieve searches in average-case $O(1)$ time, while the worst-case complexity is $O(n)$ when multiple keys collide in the same bucket.

As a quick primer, here are descriptions of the array and linked list data structures and their pros and cons:

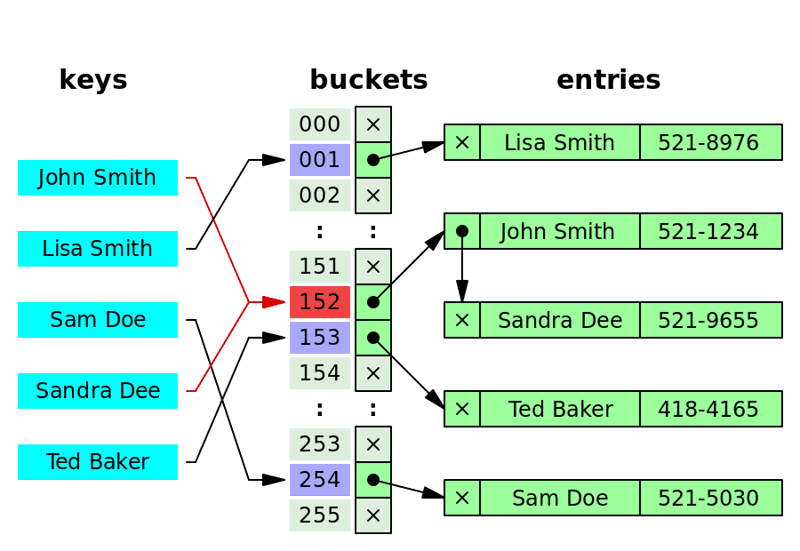

Hash tables are constructed as arrays of linked lists. Without going too much into detail, what this means is that:

• When an item is added to the hash table, its ID or key is hashed which should give us a number corresponding to which bucket (i.e. array item) the item should sit under.
• By hashing the ID of a data item, we can instantly determine which bucket it belongs to, allowing for O(1) access in the average case.
• The array item contains a pointer (i.e. a memory address) to the start of a linked list which holds all the data in that bucket.
• This means that, if there is only one item in each linked list, we can access data in $O(1)$ time. This “best case” occurs when we don’t get much hash key collision, something we can manipulate with what hash function we use and how big of a hash table we allocate initially.
  • On the other hand, the worst case of $O(n)$ occurs when all keys have collided and all data is in the one linked list.

So what does this mean practically for us?

• Increasing the size of the hash table reduces the chance of key collisions, improving search performance by keeping lookups closer to O(1).
• Since there are linked lists under each bucket, our hash table can now grow indefinitely - however this comes at the cost of search time.
• Since hash tables rely on an array of pointers, increasing the number of buckets (to reduce collisions) often requires resizing and rehashing, which can be costly because every key must be reinserted into the new table.
• Another downside of hash tables is that they allocate a large amount of memory upfront to set up the initial array.

Due to their performance implications, hash tables are found commonly in the wild - for example, JavaScript objects and Python dictionaries are implemented as hash tables.

Implementation

Required C concepts

There are a few key C concepts we need to go through quickly before we dive into the implementation:

• C allows you to define your own data structures using the struct keyword.
• C requires you to pre-specify the data type returned from a function. So int main (void) is a function definition that returns an integer and that takes no arguments.
• A core concept in C are pointers, which are essentially addresses in memory to certain variables.
  • We use the dereference operator * to return the contents of the item at a given pointer.
  • We use -> to access a struct member when working with a pointer to a struct. It is shorthand for (*pointer).attribute. So if we have a node struct that contains an attribute called key, then we do {node}->{key} to access the key of a given node.

Actual implementation

To begin, we need a few structs:

• A node struct to define the nodes of a linked list containing space for a key, a value, and then a pointer to the next item in the linked list.
• A hash_table struct to define the overarching array in the hash table, an array of pointers of length TABLE_SIZE.

#define TABLE_SIZE 11


// Implementation of the linked list component
typedef struct node {


   char *key;
   char *value;
   struct node *next;


} node;


// Overarching struct for the hash table
typedef struct {
   node *buckets[TABLE_SIZE]; // Array of pointers to linked lists
} hash_table;

We also need a hash function that takes a word and returns an integer, describing which bucket to place the data into

NB: Strings in C are represented as character arrays, and a string variable is a pointer to the first character of the array. This allows efficient passing of strings as function arguments.

/*
   Hash function


   We need a hash function that can adequately hash our keys,
     whilst suppressing the probability of key collision. CS50
     suggests a naive approach using the first letter of the name,
     but let's use DJB2 for now.


   djb2 hash function modified from http://www.cse.yorku.ca/~oz/hash.html


*/
unsigned int hash(const char *word, const int table_size) {


   unsigned long hash = 5381;
   int c;
   while ((c = *word++))
       hash = ((hash << 5) + hash) + c;
   return hash % table_size;  // Keep it within table size


}

With these fairly simple building blocks, we can now create the hash table:

• Note how the return value of this function is a pointer to a hash_table struct.
• We use malloc(sizeof(hash_table)) to allocate memory for the entire hash_table struct, which includes the array of pointers. Since the buckets array is part of the struct, we don’t need a separate allocation for it.
• We then go through each element of the array and replace the value with a NULL since the allocated memory addresses may currently contain ‘garbage values’ that were left over from some other system process.

// Create hash table
hash_table *create_table() { // Returns a pointer to the hash table


   // Allocate memory for the hash table struct
   hash_table *ht = malloc(sizeof(hash_table));
   if (!ht) {
       printf("Memory allocation failed\n");
       return NULL;
   }


   // Initialize all buckets to NULL (drop all garbage values)
   for (int i = 0; i < TABLE_SIZE; i++) {
       ht->buckets[i] = NULL;
   }


   return ht;
}

Interacting with the hash table

With our hash table now implemented, all that remains is to create the functions we use to interact with the table. We’ll implement operations such as getting, inserting, and deleting values, then we’ll finish off with methods to print or delete the entire table.

get()

This function accepts the hash table, as well as a string representing the key we want to get the value for.

• We then hash the key to figure out which bucket to look in.
• Accessing that element of the bucket takes us to the corresponding linked list.
• From here all we need to do is traverse the linked list by grabbing the next address to find the next item until we find a key that matches the search string.
• Note the while (cursor) loop, this will terminate once we’re at the last item in the linked list whose next attribute will be NULL (which evaluates to false in C).

// Get from hash table
char *get(hash_table *ht, const char *key) {


   // Get index in overarching array of hash table
   unsigned int index = hash(key, TABLE_SIZE);


   // Get pointer to first node under this key
   node *cursor = ht->buckets[index];


   // Then from there, we just traverse the linked list until we find the key we're looking for
   while (cursor) {


       if (strcmp(cursor->key, key) == 0) {
           return cursor->value;
       }
       cursor = cursor->next;


   }


   // If we reach this point, we will not have found anything
   return NULL;


}

insert()

This function accepts a key and corresponding value to insert into the hash table.

• We first hash the key to figure out which bucket to place the item in.
• We then check the linked list at that bucket to see if the key already exists - if it does then we update the value.
• If the key doesn’t exist, we’ll create a new node at the start of the linked list. This means we need to:
  • Allocate memory for a new node with malloc().
  • Fill that node with the key and value provided.
  • Set the next attribute to the original first item in the list.
  • Update the pointer in the overarching array to point to the new first item in the list.

NB: We use strdup to allocate new memory and copy the string, since directly assigning key = some_string would only copy the pointer, leading to potential memory issues.

// Insert into the hash table
void insert(hash_table *ht, const char *key, const char *value) {


   // Get index in overarching array of hash table
   unsigned int index = hash(key, TABLE_SIZE);


   // Check if key already exists and update value
   node *current = ht->buckets[index];
   while (current) {
       if (strcmp(current->key, key) == 0) { // If key exists, update value
           free(current->value);             // Yeet old value
           current->value = strdup(value);   // Update with new value
           return;                           // Exit without inserting a duplicate node
       }
       current = current->next;
   }


   // Allocate memory for the new node if doesn't already exist
   node *new_node = malloc(sizeof(node));


   if (!new_node) {
       printf("Memory allocation failed\n");
       return;
   }


   // Copy name and number
   new_node->key      = strdup(key);
   new_node->value    = strdup(value);
   new_node->next     = ht->buckets[index];  // Insert at the beginning of the linked list
   ht->buckets[index] = new_node;            // Update head pointer


}

delete()

This function accepts a key, navigates to that item, and deletes the node.

• We first hash the key to figure out which bucket to look for the item in.
• We then grab the pointer to the relevant linked list and traverse that linked list until we find a key that matches the one we need to delete.
• Once found, we free the key and value from memory.
• We set the previous node’s next pointer to the node after the one being deleted to complete the operation.
• Note that if we’re deleting the first node in the list, we’ll also need to update the pointer in the overarching array.

// Delete node
void delete(hash_table *ht, const char *key) {


   // Get index in overarching array of hash table
   unsigned int index = hash(key, TABLE_SIZE);


   // Node pointer
   node *ptr  = ht->buckets[index];
   node *prev = NULL;


   if (!ptr) {
       printf("No nodes to delete\n");
       return;
   }


   // If node exists, traverse linked list to find where our node is
   while (ptr) {


       if (strcmp(ptr->key, key) == 0) {


           // If deleting the head node, update the hash table array
           if (prev == NULL) {
               ht->buckets[index] = ptr->next;
           } else {
               prev->next = ptr->next;   // Bypass the node being deleted
           }


           // Free memory
           free(ptr->key);
           free(ptr->value);
           free(ptr);
           printf("Deleted key: %s\n", key);
           return;  // Exit after deleting (assuming unique keys)


       }


       prev = ptr;      // Move prev to current node
       ptr = ptr->next; // Move to next node


   }


   printf("Key not found: %s\n", key);


}

print_table()

This is a simple function that will traverse the array items of the hash table, printing the contents of each linked list that exists.

// Print table
void print_table(hash_table *ht) {


   for (int i = 0; i < TABLE_SIZE; i++) {


       printf("[%d]: ", i);
       node *cursor = ht->buckets[i];
       while (cursor) {
           printf("(%s, %s) -> ", cursor->key, cursor->value);
           cursor = cursor->next;
       }
       printf("NULL\n");


   }


}

free_table()

This is an important function to ensure that there are no memory leaks once the main() function completes. We use this function to ‘delete’ the hash table from memory.

• Similar to print_table(), this function traverses the array and each linked list, free-ing items from memory as we go.

// Free table
void free_table(hash_table *ht) {


   for (int i = 0; i < TABLE_SIZE; i++) {


       node *cursor = ht->buckets[i];
       while (cursor) {
           node *temp = cursor;
           cursor = cursor->next;
           free(temp->key);
           free(temp->value);
           free(temp);
       }


   }


   free(ht);


}

Example usage

We’ll place our example usage code in the main() function for illustration. Here we start off by creating the table, placing keys and values into it, getting & deleting items, then freeing the table.

int main(void) {


   hash_table *ht = create_table();


   insert(ht, "Charlie", "(634) 466-1630");
   insert(ht, "Mac", "1-436-705-3673");
   insert(ht, "Dee", "1-214-717-1808");
   insert(ht, "Dennis", "(491) 584-6065");
   insert(ht, "Frank", "(641) 848-9738");


   char *name = "Agamemnon";
   char *result = get(ht, name);  // Declare and initialize `result`
   if (result) {
       printf("Found %s: %s\n", name, result);
   } else {
       printf("%s not found\n", name);
   }


   name = "Dennis";
   result = get(ht, name);  // result var already initialised
   if (result) {
       printf("Found %s: %s\n", name, result);
   } else {
       printf("%s not found\n", name);
   }


   print_table(ht);


   delete(ht, "Agamemnon");
   delete(ht, "Dennis");


   print_table(ht);


   free_table(ht);


   // We see that Dee and Charlie have keys that collide in this small of a table
   printf("Dee hash: %i\n", hash("Dee", TABLE_SIZE));
   printf("Charlie hash: %i\n", hash("Charlie", TABLE_SIZE));


   return 0;


}

/*
   Result


   $ make hash-table
   $ ./hash-table
   > Agamemnon not found
   > Found Dennis: (491) 584-6065
   > [0]: (Mac, 1-436-705-3673) -> NULL
   > [1]: NULL
   > [2]: (Dee, 1-214-717-1808) -> (Charlie, (634) 466-1630) -> NULL
   > [3]: NULL
   > [4]: NULL
   > [5]: (Dennis, (491) 584-6065) -> NULL
   > [6]: NULL
   > [7]: NULL
   > [8]: (Frank, (641) 848-9738) -> NULL
   > [9]: NULL
   > [10]: NULL
   > Key not found: Agamemnon
   > Deleted key: Dennis
   > [0]: (Mac, 1-436-705-3673) -> NULL
   > [1]: NULL
   > [2]: (Dee, 1-214-717-1808) -> (Charlie, (634) 466-1630) -> NULL
   > [3]: NULL
   > [4]: NULL
   > [5]: NULL
   > [6]: NULL
   > [7]: NULL
   > [8]: (Frank, (641) 848-9738) -> NULL
   > [9]: NULL
   > [10]: NULL
   > Dee hash: 2
   > Charlie hash: 2


*/

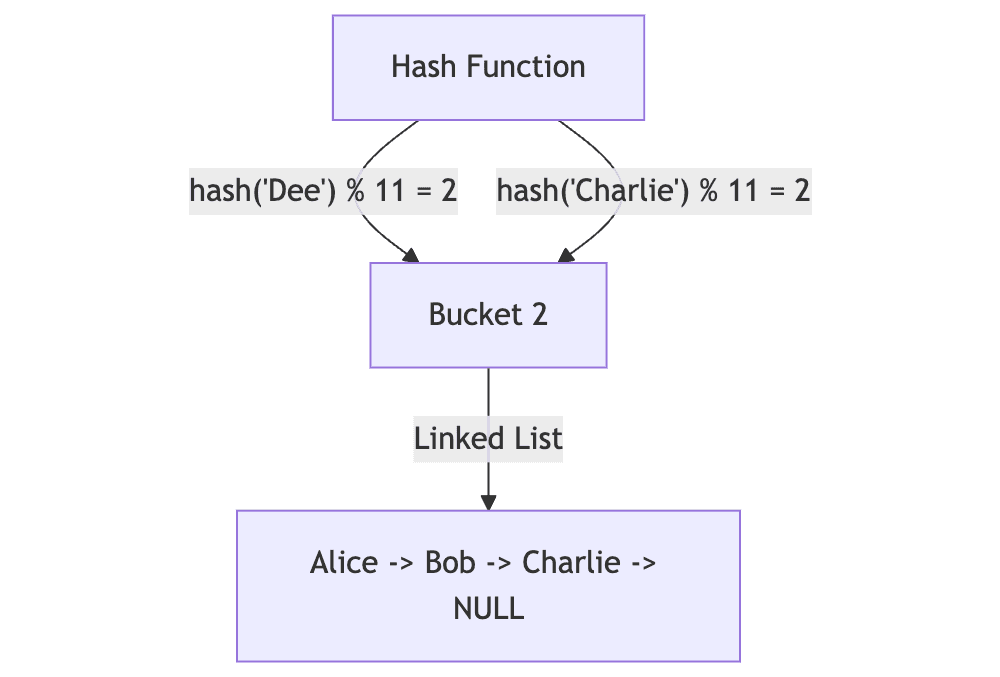

Note that we can see already that two of our keys (Dee and Charlie) have collided. This happens because our hash function produces the same remainder (hash(key) % 11) for both Charlie and Dee. A larger table size would reduce the probability of such collisions.

Wrap-up

While fun, this is still a naive implementation of this data structure. To improve this, we could probably start by splitting up the struct and function definitions into their own scripts to improve readability.
