Introduction

I’ve recently been looking at the Canberran housing market with the intention of getting a property. With this in mind, I thought it would be a good idea to start to get a feel for pricing by looking at some data. Since there doesn’t seem to be a property pricing dataset easily and freely available to us, it seems I’ll need to get the information myself - this is the main focus of this post.

We can get prices of houses sold recently by web scraping the ‘Sold’ pages of the most popular real estate aggregator websites with R. Note that we’re only interested in the ‘Sold’ page since this gives us a better idea of what people were willing to pay for the place, and not be biased by potentially aspirational prices posted on yet-to-sell listings.

In this article, I'll explain how I created web scrapers for AllHomes and Domain using R packages like rvest and polite. In future articles, I'll discuss how I'm storing this data in a locally hosted PostgreSQL database and implementing Slowly Changing Dimensions (Type 2). Additionally, I'll share any further analysis I conduct on this data.

Please keep in mind that I'm currently updating the code, so the snippets I share here may not perfectly match what's on the GitHub repository. However, the underlying principles remain the same. You can find the code here.

Getting the HTML with polite

In the past, I would have simply used rvest and xml2 to perform web scraping with read_html(), but I’ve recently discovered polite. polite sits cleanly on top of rvest and and promotes responsible web scraping practices.

It does this by reading the target site’s robots.txt which outlines the site's scraping guidelines and serves as a way to request permission for scraping. The package also enforces rate limits when scraping the target site, so as to minimise the impact of the web scraping process as well as your chances of getting blocked.

polite has three main functions which will form the basis for our procurement of raw HTML from the sites we want to scrape:

• bow() introduces the scraping agent to the target website and asks for permission to scrape; this returns a scraping session object
• scrape() performs the scrape using this scraping session and retrieves data from the host server - whilst enforcing rate limiting
• When you want to move to a new path, you can nod() to agree a new path for your scraping session, then run scrape() again, etc.

In the snippet below, I’m bow()-ing initially to the base URL, then nod()-ding to each separate page of search results within the while-loop. You’ll also see me searching for the page navigation buttons at the end of each iteration - we use this information to tell us which route to jump to in the next iteration.

allhomes_scraper <- function(
  baseurl      = "https://www.allhomes.com.au",
  start_page   = NULL,
  n_pages      = Inf,
  # [...]
) {

# [...]

  # Politely introduce scraper to AllHomes website
  allhomes_session <- bow(baseurl, force = T)

  # Iterators
  start_page <- coalesce(start_page, 1)
  page_sublink <- glue('/sold/search?page={start_page}&region=canberra-act')
  iterator <- 1

  # Loop across pages until there are no more
  while (!is.na(page_sublink) & iterator <= n_pages) {

    # Agree a change in route with the server, then scrape
    search_page_html <- nod(allhomes_session, page_sublink, verbose = T) %>%
        scrape()

    # Information extraction is done here [...]

    # Get next route ----
    log_info('[AH]     Getting next route')

    pagination_buttons <- search_page_html %>% html_nodes('a[data-testid=paginator-navigation-button]')

    page_sublink <- if (length(pagination_buttons) == 1 & start_page == 1 & iterator == 1) {

      # This is the first page, go to the next page
      pagination_buttons[[1]] %>% html_attr('href')

    } else if (length(pagination_buttons) == 2) {

      # A normal page; the second button will be the next page
      pagination_buttons[[2]] %>% html_attr('href')

    } else {

      log_info('[AH]       No next page, ending scrape')
      NA

    }

    Iterator <- iterator + 1

}

Extracting information with rvest

HTML & CSS

With the HTML describing the web page now stored in the R environment, we can proceed to extract the information we need. Without getting into too much detail, modern HTML organizes content into various containers known as tags or elements. Control is then exercised over these containers to determine where everything is placed and organised on the web page.

Developers can give these containers certain attributes to allow them to be targeted for styling and more fine-grained positioning using Cascading Style Sheets (CSS). The most common attributes to use are class-es (meant to be applied over multiple elements) and id-s (mainly for targeting specific individual elements). Developers can also use the data-* attribute (e.g. data-text) to add data/information to HTML elements.

<div id="some-id" class="some-class">Content here</div>
<p class="some-other-class" data-content="intro">Lorem ipsum</p>

CSS then allows us to select elements based on their type and attributes with a high level of precision using CSS selectors; this allows us to be precise in how we style those elements when building websites. They allow us to target specific singular elements (using their id attribute) and groups of similar elements (using a class attribute). Examples of this are:

• #some-element to select the element with the id some-element
• .multiple-elements to select all elements with the class multiple-elements
• div[data-test=hello-world] to select all <div>s with data-test attribute of hello-world

We can also use CSS to target elements based on where they sit in relation to other elements. This is particularly useful when we find that the attributes on a web page do not hold any semantic value (e.g. hashed class names due to CSS-in-JS libraries), and we need to find the information using the structure of the web-page instead. For example:

• div p selects all <p> elements that sit anywhere inside any <div> element, whereas div > p finds all <p> elements that sit inside the first level of any <div>
• .some-class > div:nth-of-type(3) selects the third <div> tag inside the first level of any element with class some-class

We’ll look at use cases for both of these approaches in this article.

Using HTML attributes to extract information

We can use the same CSS selector approach when selecting elements to be extracted during web scraping. We combine this with rvest::html_nodes() which returns the nodes/tags that match the CSS selectors provided. We’ll go through some examples in this and the next sub-section.

In the case that the website has elements with class-es/id-s/data-* attributes that have discernible meaning to them, we can generally use those to robustly target and extract information from those elements.

For example, the popular real estate aggregator site Domain uses specific class names for containers that hold information we want to scrape (such as house price, number of bathrooms, etc.)

Note that you can view any website’s HTML and CSS by opening up your browser’s DevTools (Chrome Devtools: ⌥ + ⌘ + I or Ctrl + Shift + I)

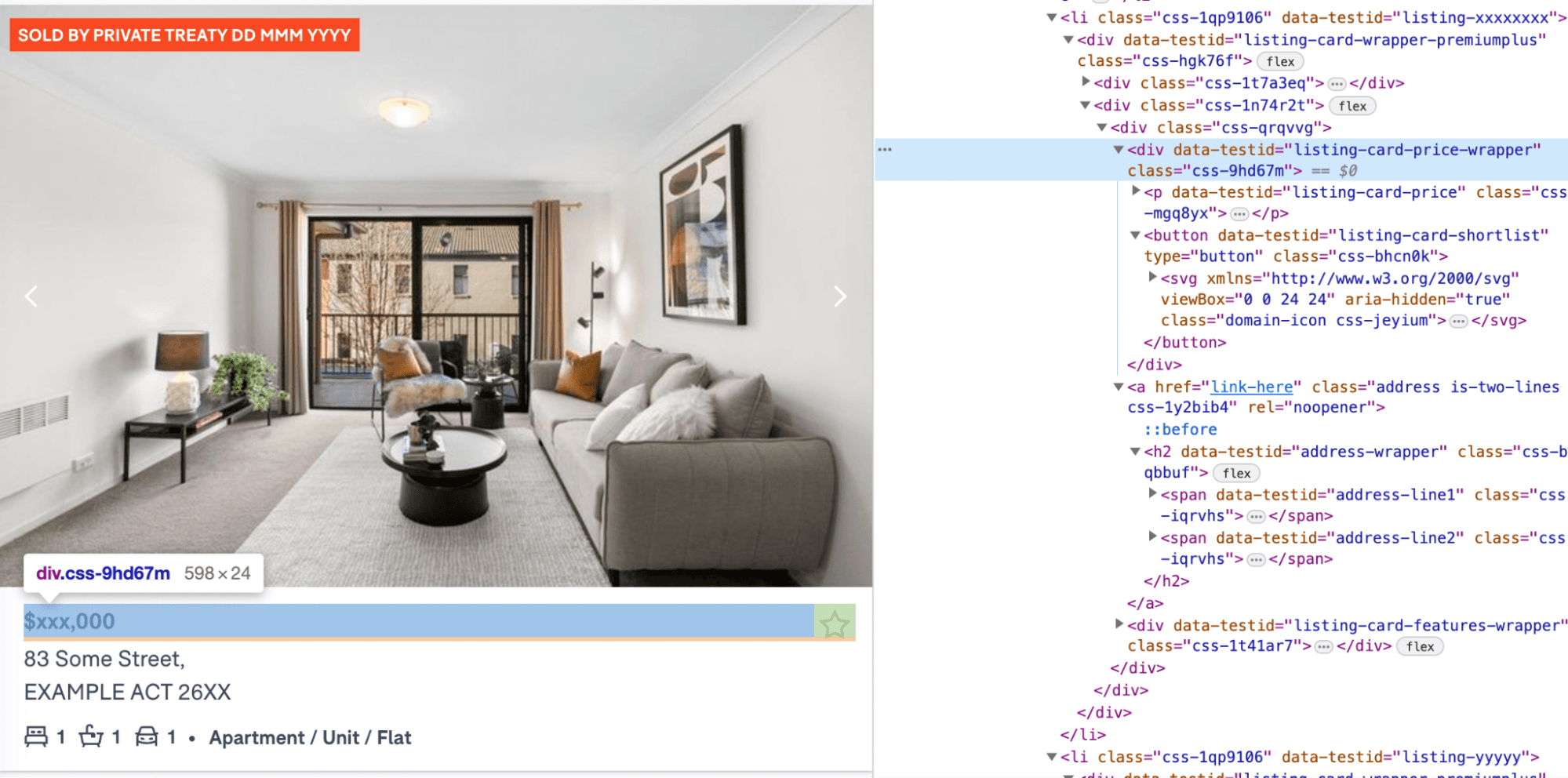

The HTML looks like the image below. We can see that the following elements map to certain classes.

In order to access these elements, I’ve set up a base query which pulls out our individual search results, then several sub-queries which pull specific bits of information from each search result.

# Our base query gets us our house results and navigates internally to where
# the information is. This navigation was built by inspecting the structure
# of each card in Chrome DevTools
base_query <- "div[data-testid^=listing-card-wrapper]"

# From the base query, we add these extra selectors on to pull out
# easy-to-access relevant information
sub_queries <- list(
    price         =
    " p[data-testid=listing-card-price]",
    address       =
    " span[data-testid=address-line1]",
    locality      =
    " span[data-testid=address-line2] > span:nth-of-type(1)",
    state         =
    " span[data-testid=address-line2] > span:nth-of-type(2)",
    postcode      =
    " span[data-testid=address-line2] > span:nth-of-type(3)",
    abode_type    =
    "div[data-testid=listing-card-features-wrapper] > div:nth-of-type(2)"
)

Note that we're already starting to use the position of certain elements to pull information (span:nth-of-type(x)), however we'll go into more detail in the next sub-section.

We can then loop over each of these subqueries to return a row of attributes for one property, then bind them all together

# Getting HTML for individual search results
relevant_html <- search_page_html %>%
    html_nodes(base_query)

# Looping over the sub-queries
names(sub_queries) %>%
    map_dfc(~{

        relevant_html %>%
        html_nodes(sub_queries[[.x]]) %>%
        html_text() %>%
        # Trim any hanging whitespace
        trimws()

    }) %>%
    set_names(names(sub_queries)) %>%
    # Manipulating the price string to pull relevant information
    mutate(
        price    = str_extract(price, '(?<=\\$)[0-9,]+') %>%
        str_remove_all(',') %>%
        as.numeric(),
        address  = str_remove(address, ',\\s$'),
        locality = str_to_title(locality),
        source   = 'domain'
    )

#>  # A tibble: 10 × 7
#>       price address   locality  state postcode abode_type              source
#>       <dbl> <chr>     <chr>     <chr> <chr>    <chr>                   <chr>
#>   1  600000 5/10 x x  Suburb    ACT   26XX     Townhouse               domain
#>   2  500000 1/17 x x  Suburb    ACT   26XX     Townhouse               domain
#>   3  500000 15/10 x x Suburb    ACT   26XX     Townhouse               domain
#>   4  500000 2/10 x x  Suburb    ACT   26XX     Apartment / Unit / Flat domain
#>   5  900000 39 x x    Suburb    ACT   26XX     House                   domain
#>   6  700000 16 x x    Suburb    ACT   26XX     House                   domain
#>   7  600000 2/68 x x  Suburb    ACT   26XX     Townhouse               domain
#>   8  900000 2 x x     Suburb    ACT   26XX     House                   domain
#>   9 1000000 6 x x     Suburb    ACT   26XX     House                   domain
#>  10  700000 6 x x     Suburb    ACT   26XX     Townhouse               domain

This is simplified for illustration but in practice it is likely more robust to loop over each individual search result since missing values from each of the sub-queries will cause issues in the map_dfc()/bind_cols() step.

Using HTML structure to extract information

There are some cases where a site has CSS class names that are hashed or otherwise nonsensical. This often happens in the case of CSS-in-JS or any kind of scoped styling and also makes it slightly more difficult to scrape things. We can see this happening in the Domain example (class names css-9hd67m, css-bhcn0k), but since certain elements had meaningful data-testids, we could still target our desired elements.

However, sites such as AllHomes appear to have hashed classes, but no defining attributes for elements that contain key pieces of information. In this case, we need to turn to how the HTML is structured in order to extract the information we seek. This is possible because each individual search result is structured the same as the others.

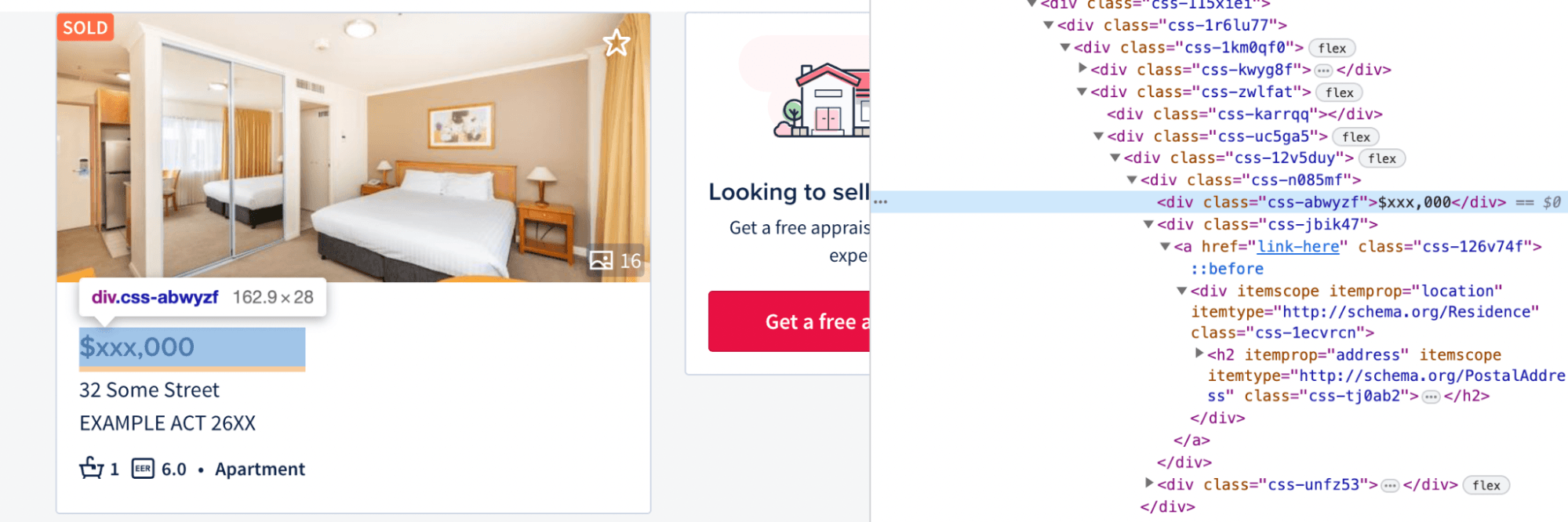

The screenshot above shows the structure of a single search result. From this, we can start to determine where we need to traverse in the HTML structure to get information like price and address. For example, we can see that to get to the price element from the top level of the results card, we need to:

• Go to the first div within the result card (class css-1km0qf0)
• Go to the second div within that div (css-zwlfat)
• Go to the second div within that div (css-uc5ga5)
• Go the first div within that div (css-12v5duy)
• Go the first div within that div (css-n085mf)
• Go the first div within that div (css-abwyzf) - this is where the price information lies

Chrome’s (or any modern browser’s) DevTools are particularly helpful here as when you mouse over HTML elements, the corresponding element on the web-page is highlighted. This makes it easier for us to understand where the elements we care about sit in relation to our reference points (in this case, the top level of each search result). This also makes it easy for us to verify that the same relationship exists in the other search results as well.

As before, we set up an initial base query that gets us to the container of each search result. Note the similarity between the base query and instructions in the example above with the exception of the last instruction (which is contained in a sub-query). Luckily (or unluckily), price is the only major piece of information we need to target this way; all other aspects appear to have meaningful itemprop attributes.

# Note that AllHomes has ads and other information interleaved with their
# search results. This means that we aren’t able to simply pick the element
# that contains all search results and treat every child element as a search
# result. Instead, we determine which CSS class appears most frequently and
# assign that to `house_card_class`. More details in the GitHub repository.
base_query <- glue("
    div[id='__domain_group/APP_ROOT']
    div.{house_card_class} >
    div:nth-of-type(1) >
    div:nth-of-type(2) >
    div:nth-of-type(2) >
    div:nth-of-type(1) >
    div:nth-of-type(1)
")

# From the base query, we add these extra selectors on to pull out relevant
# information
sub_queries <- list(
    price         =
    "> div:nth-of-type(1)",
    …
    # All other elements had meaningful `itemprop` attributes
)

Conclusion

With the data now scraped and organized into tables, our focus naturally turns to data storage for future analysis. In the upcoming blog posts, I'll detail the process of setting up a PostgreSQL instance for securely housing this data. I'll also explore the concept of Type 2 Slowly Changing Dimensions. While it might seem like overkill for a property-level dataset where we don't expect attributes to change often, it provides valuable insights into data management practices that can be adapted to various scenarios.
